About restoring data

Restore refers to reconstructing all or part of a system from a backup.

You can perform a restore job for various reasons, such as the following:

The NetVault plug-ins integrate with the native APIs to restore and recover application-specific data from backups. Depending on the application type, these plug-ins provide different methods and options to restore data.

In general, NetVault offers the following restore features:

To restore data, you need to create and submit a restore job. You can create a restore job definition from the Create Restore Job link in the Navigation pane.

A restore job definition includes the following components:

These components are stored in NetVault Sets. For more information about NetVault Sets, see About NetVault Sets.

Each restore job has a Job ID number and a Job Name. The Job ID number is an auto-generated number. The Job Name is a user‑defined string that allows you to easily identify the job when monitoring its progress or viewing the job logs.

Creating restore jobs

You can use the restore job wizard to create and submit restore jobs. The wizard can be accessed from the Create Restore Job link in the Navigation pane.

1
In the Navigation pane, click Create Restore Job.

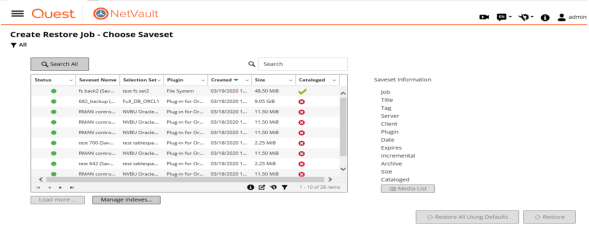

On the Create Restore Job — Choose Saveset page, the saveset table provides a list of available savesets.

Saveset is online (all segments are online).

Saveset is partially online (some segments are online).

Saveset is offline (all segments are offline).

The Create Restore Job — Choose Saveset page loads a maximum of 5000 records initially. The total number of records fetched is displayed at the lower-right corner of the table.
You can click Load more to load the next set of records, if available. Each load action fetches a maximum of 5000 records. This button is disabled if there are no more records to load.
You can use the Search option to filter the table data and quickly find entries that contain the specified string in any column values. You can also include wildcards (“?” or “*”) in the search filter string. For more information, see Searching for files in savesets.
NOTE: If the online backup index is unavailable for the selected saveset, the Confirm load dialog box is displayed. To load the index from the backup media, click OK, and then in the Load Index dialog box, type or select the number of days you want to store the index in the NetVault Database.
When you select a saveset, the following details are displayed in the Saveset Information area: job ID number, job title, tag, server name, client name, plug-in name, saveset date and time, retirement setting, Incremental Backup or not, archive or not, saveset size, and cataloged status.
Restore All Using Defaults. This option selects the entire saveset and pre-populates the details on the Create Restore Job page. It then navigates you to the Create Restore Job page where you can optionally change the details by using the buttons beside each text box. The job name appears in the following format: Restore_Saveset savesetid_system date and time _jobid+1. Optionally, you can change the job name. For more information about changing the restore details, continue to the next step. To restore using the pre-populated defaults, skip to Step 11.
Restore. This option opens the Create Selection Set page. On the Create Selection Set page, select the items that you want to restore.
Click Edit Plugin Options, and configure the options that you want to use, and then click Next.
5
On the Create Restore Job page, specify a name for the job.
6
In the Target Client list, select the restore target. To restore data to the same client (from which data was backed up), use the default setting.
To restore data to an alternate client, select the target client in the list. Alternatively, click Choose. In the Choose the Target Client dialog box, select the client, and click OK.
7
In the Schedule list, select an existing Schedule Set, or click Create New, and configure the schedule type and schedule method. For more information. For more information, see Creating Schedule Sets.
The predefined set “Immediate” is selected by default. To run the job as soon as it is submitted, use this set.
8
In the Source Options list, select an existing Source Set, or click Create New, and configure the source device options. For more information, see Creating Source Sets for restore jobs.
The predefined set “Any Device” is selected by default. To select any available device for the job, use this set.
9
In the Advanced Options list, select an existing Restore Advanced Options Set, or click Create New, and configure the options that you want to use. For more information, see Creating Restore Advanced Options Sets.
The predefined set “Restore from selected backup” is selected by default.
You can monitor the job progress from the Job Status page and view the logs from the View Logs page. For more information, see Viewing job activity and Viewing log messages.

Restoring data using an existing Restore Selection Set

You can use the following procedure to restore data using an existing Restore Selection Set. This procedure is useful if a user role is not granted the “Jobs — Administer backup/restore sets” privilege, which is required to create or edit a Restore Selection Set.

2
In the Set Type list, select Restore Selection.
4
On the Edit Selection Set page, click Next.
On the Edit Selection Set page, modify the data selections, set name, or plug-in option.
Click Next. In the Confirm overwrite dialog box, click OK to overwrite the existing set.
5

Searching for files in savesets

The Search All / Search Selected Saveset(s) option on the Create Restore Job — Choose Saveset page allows you to find specific files or data items without opening any savesets or browsing through their contents. You can use filenames or regular expressions to find the data items that you want to restore.

To conduct a catalog search within a saveset, click the bulb icon shown near Search All or Search Selected Saveset(s) button on the Create Restore Job — Choose Saveset page.

1
On the Create Restore Job — Choose Saveset page, select a saveset and then click Search Selected Saveset(s).
2
In the Search for files in savesets details drawer, enter the following criteria.

Name

Enter the name of the file that you want to find.

Path

Enter the location of the file that you want to find.

Search

In the text box, enter a string of words that are associated with the selected criteria.

Job Name

Enter the job name that applies to the file that you want to find.

Backup Selection Set

Enter the name of the backup selection set that contains the file that you want to find.

Backup Date

Under From, enter the earliest time and date of your search range in the respective text boxes.

Under To, enter the latest time and date of your search range in the respective text boxes.

Modified Time

Under From, enter the earliest time and date of your search range in the respective text boxes.

Under To, enter the latest time and date of your search range in the respective text boxes.

Size in Bytes

Enter the Min (minimum) and Max (maximum) size, in bytes, for the search range.

Plugin fields

Expand to reveal the available options, and then select the plug-in or plug-ins that relate to your search.

Client fields

Expand to reveal the available options, and then select the client or clients that relate to your search.

Job fields

Expand to reveal the available options, and then select the job or jobs that relate to your search.

Use legacy search method

In cases when a saveset that is not cataloged is included in the search, the option to use the legacy search method appears. With this option, only a search bar is available to conduct the search. Catalog filters do not apply to savesets that are not cataloged.

3
Click Search.

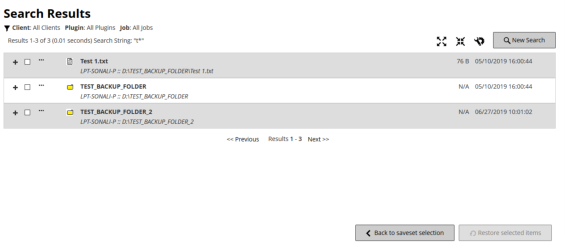

Filter icon: To filter the records displayed in the search results table, click this icon. For more information on filter options, see Table 14.
Expand icon: To expand all result items, click the expand icon shown on top of the results table.
Collapse icon: To collapse all result items, click the collapse icon shown on top of the results table.
Settings icon: To set the number of search results per page, click the settings icon. ‘Settings’ drawer is displayed on the right- side of the page. Type or select the value and click OK. By default, the page displays 25 records. You can view a minimum 10 and maximum 100 records on the Search Results page.
New Search button: To search the data items in the selected saveset, click New Search.
The Search for Files in Savesets details drawer opens. Repeat steps 1-3.To expand an item and view the file metadata, such as plug-in, job name, job ID, saveset ID, and backup date and time, click the corresponding plus icon.
The Filepath link appears below the filename. To search within this location, click the link. The Search for Files in Savesets drawer opens with the Path automatically populated.
5
