Sharing standalone drives

3
Click Modify.
4
On the Edit Device page, click Show Drives to view the NetVault Server or SmartClient node to which the device is attached.
5
Click the applicable drive type, and then click Open to display the available drives.
6
Click the drive, and click Add Shared. This displays the drive picture, type, and details in the Selected Drives area.
8
Click Save.
The drive will added and listed in the Library Configuration area on the Edit Device page. The status will change to online when the drive initialization process completes.13.0.3

Managing storage media

Role-based access for storage media management

Explore storage

X





Manage - Tape Media

X





Manage - RAS Devices

X





Manage - Snapshot Array Manager

X

X



Viewing storage summary

1
2

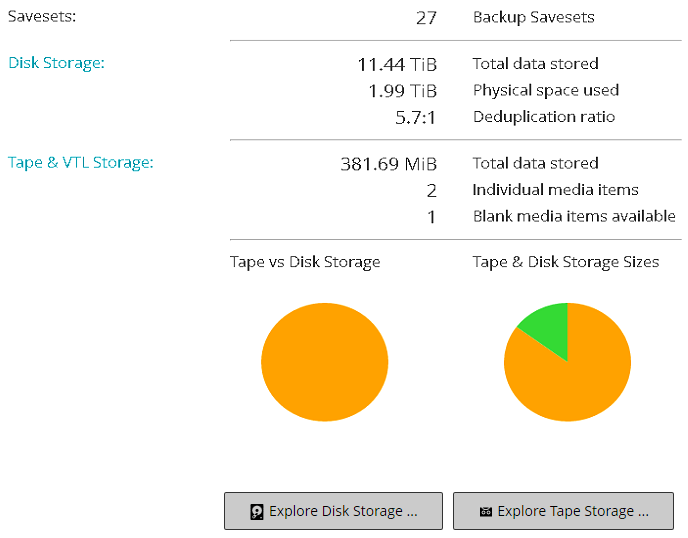

On the Explore Storage page, you can view the following information.

Saveset

This area shows the total backup savesets stored in disk-based and tape-storage devices.

Disk Storage

This area shows the following information:

Total data stored: Total data stored in disk-based backup devices (total data size without deduplication).
Physical space used: Total physical space used by backups stored in disk-based backup devices (total data size with deduplication).
Deduplication ratio: The ratio of size of data before deduplication to the size of data after deduplication.

Tape & VTL Storage

This area shows the following information:

Total data stored: Total data stored in physical and virtual tape media.
Individual media items: Number of media items used by the backups stored in physical and virtual tape media
Blank media items available: Number of blank media items available on the added physical and virtual tape devices.

Tape vs Disk Storage (Pie chart)

The pie chart shows the total data stored in tape- and disk-based devices.

Total data stored in disk-based backup devices.

Total data stored in physical and virtual tape media.

Tape & Disk Storage Sizes (Pie chart)

The pie chart shows the total data stored in tape-based devices, total data stored in disk-based devices, and physical space used by backups stored in disk-based devices.

Total data stored in disk-based backup devices (total data size without deduplication).

Total physical space used by backups stored in disk-based backup devices (total data size with deduplication).

Total data stored in physical and virtual tape media.
