On Demand Migration Current - User Guide

About On Demand Migration Before You Start Working with On Demand Migration Account Migration Mailbox Migration OneDrive Migration Microsoft Teams Migration Microsoft 365 Groups Migration SharePoint Migration Public Folders Migration Troubleshooting Finalizing the Migration

Filtering

You can quickly filter lists based on the predefined criteria. The steps to filter a list is the same across all lists.

To apply a filter

Click one or more filters and select a value from the dropdown list.

Filters are applied immediately when selected. Each predefined filter also displays the count of items for each value available in the dropdown list. These values take into consideration any other filter that is already applied. For example, in the image above, there are 10 accounts in the Accounts list that have Status = New because the list has already been filtered for Unmatched accounts of type User.

To clear a filter

Click the X icon in the filter box to clear a single filter

-or-

Click Clear All to clear all filters.

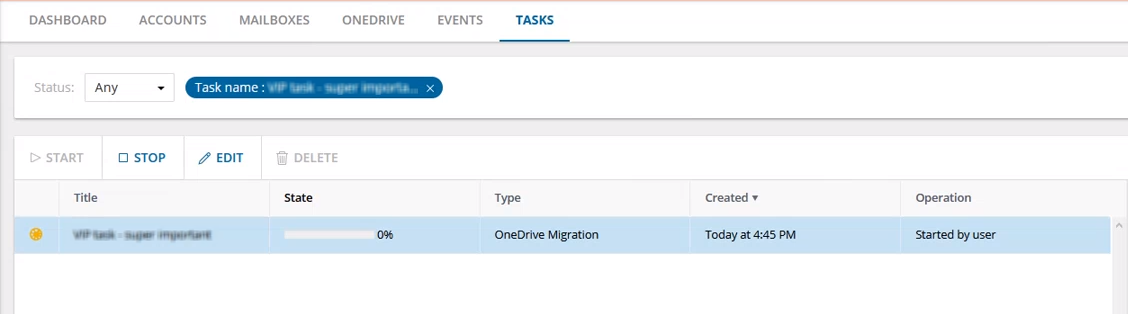

The filters may be automatically applied, when you navigate across the interface. For example, navigate from assessment reports, view details on the specific task, or click links in notifications.

Account Migration

In this chapter:

What We Migrate

The On Demand Migration service for Accounts migrates discovered user accounts and the following types of discovered groups:

  • Microsoft 365 Groups
    • ownership (for accounts that have a pair on the target tenant )
    • membership (for accounts that have a pair on the target tenant )
    • email address for migrated Microsoft 365 Groups will be created in default target domain. See Microsoft Teams Migration for details on how to migrate Microsoft 365 Groups associated with Teams.
  • Security groups
    • ownership (for accounts that have a pair on the target tenant )
    • membership (for accounts that have a pair on the target tenant )
  • Mail-enabled security groups
    • ownership (for accounts that have a pair on the target tenant )
    • membership (for accounts that have a pair on the target tenant )
    • membership approval
    • delivery management
    • message approval
    • MailTip
    • group delegation
    • visibility in GAL
  • Distribution lists
    • ownership (for accounts that have a pair on the target tenant )
    • membership ( for accounts that have a pair on the target tenant )
    • membership approval
    • delivery management
    • message approval
    • MailTip
    • group delegation
    • SendAs and SendOnBehalf group delegates
    • visibility in GAL

Migrating distribution lists with group delegations

On Demand migrates distribution lists with group delegations like SendAs and SendOnBehalf, including scenarios where the distribution list in the target exists or does not exist, or exists and does or does not have group delegations. When the distribution list with group delegations exists in the target then only newly added group delegations are migrated, and group delegations are ignored if anything is deleted at the source. Existing SendAs and SendOnBehalf group delegations on the target, either preexisting before On Demand migration or migrated by On Demand will be left intact and merged with the one migrated from the source.

Delegated accounts are migrated as follows:

  Mail User Mail Box Mail Enabled Security Group Distribution List
SendAs Y Y Y
SendOnBehalf Y Y Y Y



NOTE: Microsoft does not support the following delegated account types so they do not apply to the migration.

  • For SendAS: AAD User, External/Guest User, Distribution List, Security Group
  • For SendOnBehalf: AAD User, External / Guest User, Security Group

NOTE:The Azure AD administrator account of the target tenant will be added as an owner to all target mail-enabled security groups, distribution groups and Microsoft 365 Groups.



Accounts and User Data Workspace

In this topic:

Dashboard

The dashboard in the Accounts and User Data workspace is common for the Accounts, Mailbox and OneDrive migration services. The components of the dashboard are as described below:

Notification panel - presents relevant information and shortcuts to migration activities.

Dashboard Menu - contains the following links to common activities in the migration process.

  • Configure connections - You can configure granular permissions for the source and target tenants in addition to advanced configurations such as concurrent PowerShell connections and custom EWS URL specification. For more information see .Configuring Connections
  • Discover accounts - Starts the New Account Discovery Task wizard to collect information about accounts in the source tenant. For more information see Discovering Accounts.
  • Enable calendar sharing - Starts the New Calendar Sharing Task wizard to allow users to retrieve calendar availability information after migration. For more information see Calendar Sharing.
  • Browse accounts - Opens the Accounts List view where you can search and filter for accounts, and manage all the account migration activities. For more information see
  • Download agent - Allows you to download a lightweight user desktop application (update agent) for users workstations that is needed to complete a migration project.

Dashboard Tiles

  • Getting Started - Presents quick start links to the various actions for preparing and migrating accounts.
  • Accounts - Presents a summary of the accounts in various migration states. Click Show All to open the Accounts List view to inspect the accounts.
  • Mailboxes - Presents a summary of the mailboxes in various migration states. Click Show All to open the Mailboxes List view to inspect the mailboxes.
  • OneDrive - Presents a summary of users with OneDrive in various migration states. Click Show All to open the OneDrive List view to inspect the OneDrive information.
  • Tasks - Displays the five most recent tasks that were completed in the Accounts and User Data workspace. The title displays the total number of tasks. Click Show All to open the Tasks List view.
  • Events - Displays the five most recent events that were completed in the Accounts and User Data workspace. The title displays the total number of events. Click Show All to open the Events List view .

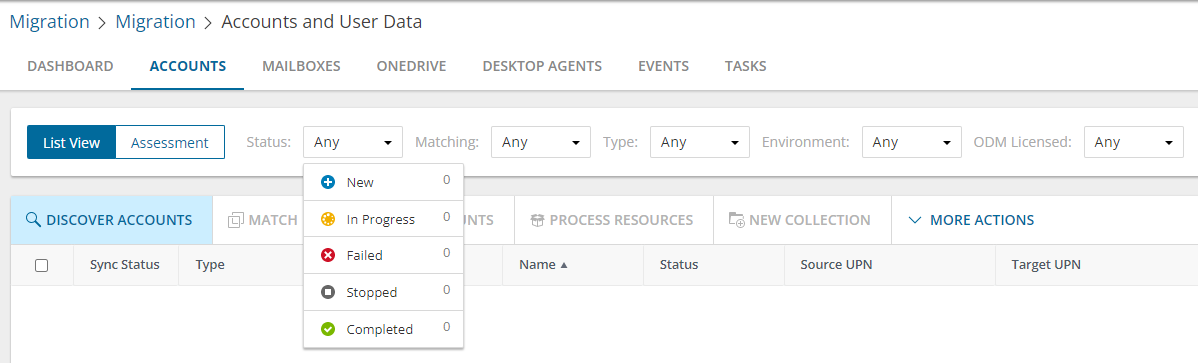

Accounts List View

The Accounts List View is comprised of the following components:

Notification panel - presents relevant information and shortcuts to migration activities.

Filter panel - consists of predefined filters for the Accounts List view and tabs to switch between the Accounts List view and the Assessment view. SeeFiltering for more information about working with filters. The predefined filters are:

  • Status - search by specific status values. valid values are Any, New, In Progress, Failed, Stopped and Completed. The status of an object is set to Stopped when a task is stopped by the user.
  • Matching - search for source accounts that are matched with a target account. Valid values are Any, Matched and Not matched.
  • Source Type and Target Type - search by specific account types as defined in Active Directory.
    • Any
    • User accounts like Guest, Mailbox-enabled, Mail-enabled and Non-mail-enabled.
    • Resource mailboxes like Equipment, Room, Scheduled and Shared.
    • Groups like Distribution, Mail-enabled-security, Microsoft 365 Group - Dynamic, Microsoft 365 - Assigned, Security - Dynamic, Security - Assigned, Teams - Dynamic and Teams - Assigned.
  • Environment - search by location of the Active Directory with which the account is synchronized. Valid values are Synced with Active Directory (synchronized with on-premise Active Directory) and In Cloud (synchronized with Azure Active Directory). This filter corresponds to the Sync Status column in the Accounts list.
  • ODM Licensed - search by license utilization. Valid values are Yes, No, Not required.

List View Menu - contains links to account migration activities and the search box. Each activity is explained in greater detail in subsequent topics. See Searching for more information about working with the search box.

List View - displays information about accounts in the source tenant and the migration status of each account. Use the Edit Columns list view menu to show or hide columns in the list. The columns are as described below:

NOTE: If you don't see the Sync Status or object description in the Type column, rerun the account discovery task as indicated in the Notification panel.

  • Sync Status - indicates whether the account is synchronized with the on-premise Active Directory or Azure Active Directory. The tool tip displays the status value.
  • Name - name of the account
  • Source Type - account type defined in Microsoft Active Directory for the source tenant. The account type can be one of the following:
    • Any
    • User accounts like Guest, Mailbox-enabled, Mail-enabled and Non-mail-enabled.
    • Resource mailboxes like Equipment, Room, Scheduled and Shared.
    • Groups like Distribution, Mail-enabled-security, Microsoft 365 Group, Security Group, Teams.
  • Target Type - account type defined in Microsoft Active Directory for the target tenant. The account type can be one of the following:
    • Any
    • User accounts like Guest, Mailbox-enabled, Mail-enabled and Non-mail-enabled.
    • Resource mailboxes like Equipment, Room, Scheduled and Shared.
    • Groups like Distribution, Mail-enabled-security, Microsoft 365 Group, Security Group, Teams.
  • ODM Licensed - indicates whether or not an On Demand Migration license has been consumed when the account is matched or migrated. Licenses are not consumed for scheduled or shared mailboxes. A license for all Active Directory objects is required that do not fall under the following categories:
    • Deactivated accounts
    • AD groups
    • Group Mailboxes
    • Contacts
    • Exchange resource mailboxes (public folder mailboxes, room mailboxes, shared mailboxes, and equipment mailboxes)
    • Guest accounts
  • Status - status of the account in the migration process. Valid values are New, In Progress, Failed and Completed. The Status column displays a progress bar that tracks the update for each account when the Matching and Migration tasks are running.

  • Source UPN - UserPrincipalName (UPN) of the source account.
  • Target UPN - UserPrincipalName (UPN) of the target account.
  • Source Group Type - group membership type in the source tenant. Valid values are Assigned or Dynamic.
    • Assigned - indicates that members are manually added or removed from the group.
    • Dynamic - indicates that users are added or removed dynamically once the membership rules are defined.
  • Target Group Type - group membership type in the target tenant. Valid values are Assigned or Dynamic.
    • Assigned - indicates that members are manually added or removed from the group.
    • Dynamic - indicates that users are added or removed dynamically once the membership rules are defined.
  • Title - Job title of the user account. Does not apply to group accounts.
  • Department - department of the user account. Does not apply to group accounts.
  • Country - country of the user account. Does not apply to group accounts.
  • City - city of the user account. Does not apply to group accounts.

Accounts Assessment

Contains summary reports about the discovered data to analyze your domain structure and track potential problems, misconfiguration, and risks that might adversely affect the migration. For more information see Assessment.

Account Details

When you select an account from the List View, the Account Detail pane opens. The information in the pane is described below:

  • Source Email - email address of the selected account in the source tenant.
  • Target Email - email address of the selected account in the target tenant.
  • Collections - list of collections that contain the selected account.
  • Status - status of the selected account. Valid values are New, In Progress, Failed and Completed.
  • Events - count of the events that occurred during account processing through one or more tasks.
  • Tasks - list of tasks invoked for the selected account.
