How to create a new Service Domain for Generic Application
Description

How to create a new Service Domain for Generic Application
Cause

NA

Resolution

Solution:

Create a Service Domain

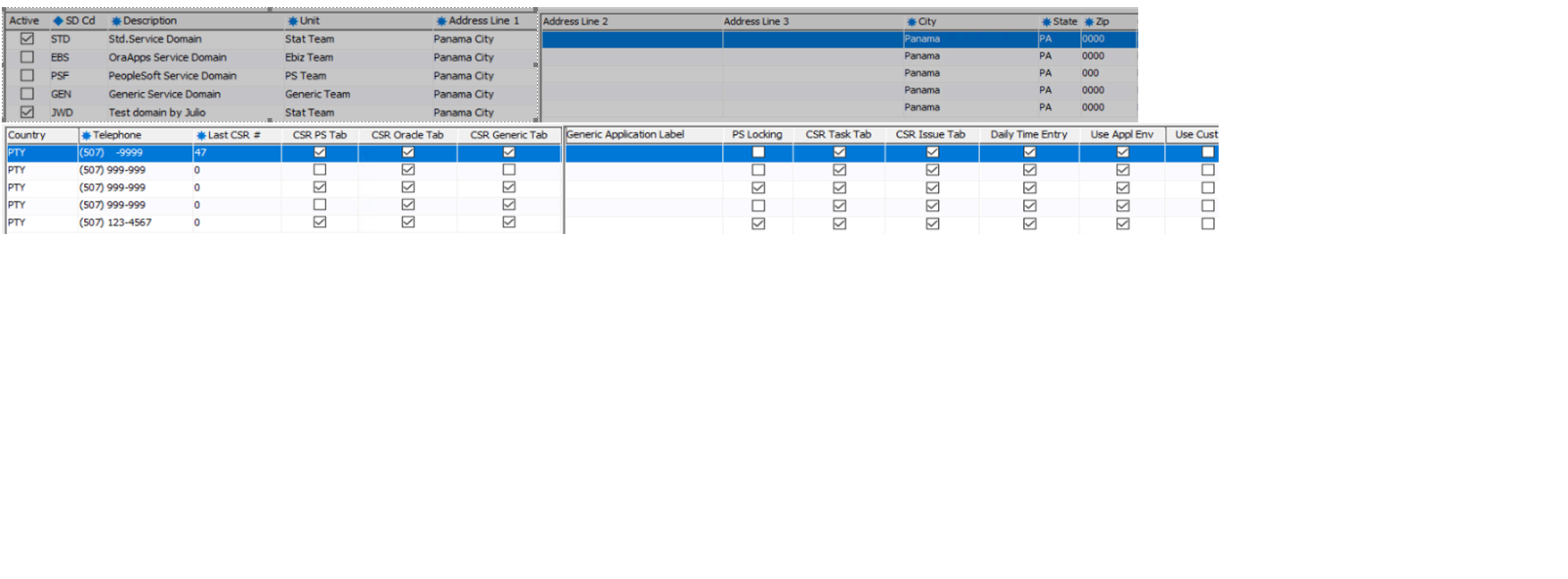

1. Go to Maintenance | General | Service Domain.

2. Enter a name in the Generic Application Label column if you want to use a different label name. Here you can see all the columns when creating a new Service Domain.

Create an Application

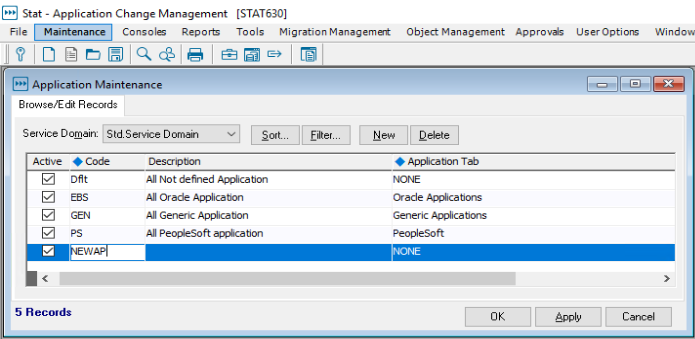

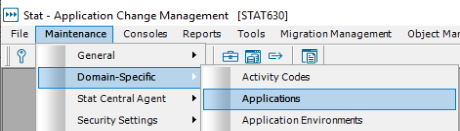

3. Go to Maintenance | Domain Specific | Applications

4. Select your newly created Service Domain.

5. Click the New button.

6. Enter the Application Code, Description and select Generic Applications in the Application Tab column if you are configuring for Generic Apps.

Create CSR Types and Statuses

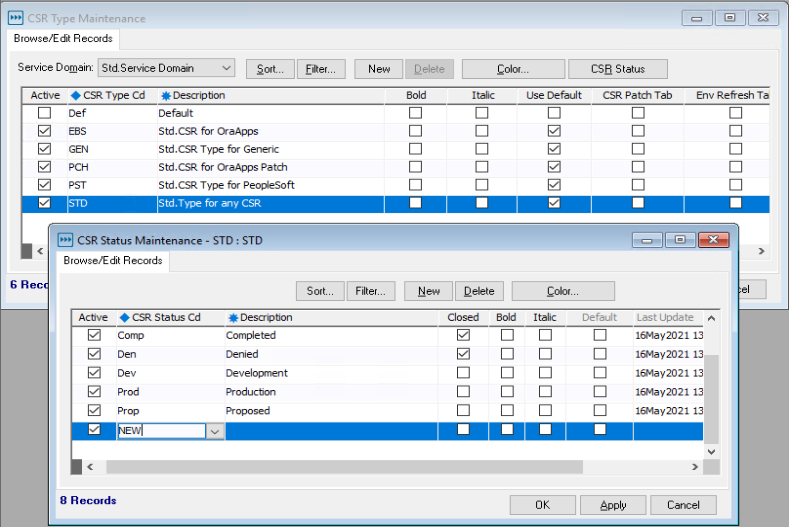

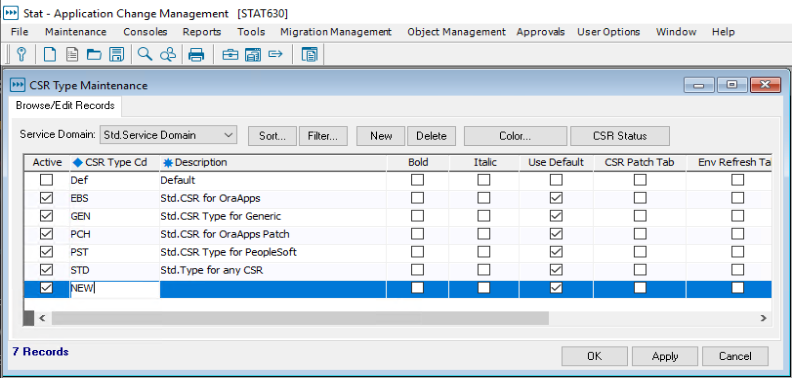

7. Go to Maintenance | Domain Specific | CSR Types and Statuses.

8. Select the Service Domain. Click theNew button

9. Enter the CSR Type Cd and Description

10. Check Use Default column

11. Click Apply button

12. Now double click on Def CSR Type Cd

13. Click New and type in the CSR Status Cd column.

Create a Generic Application Connection

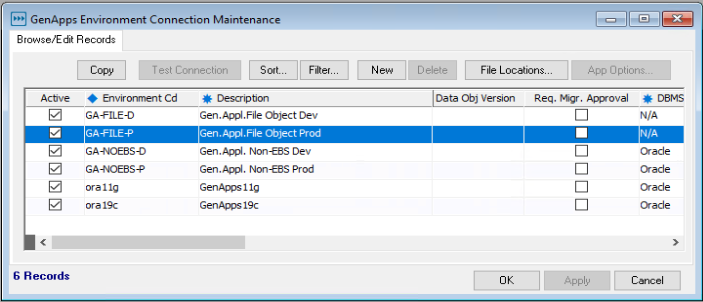

14. Go to Maintenance | General | Generic Application Connect

15. ClickNew

16. Enter Environment cd, Description, choose N/A if the Stat db is not Oracle

Database Server	The name of the DB server housing the Stat Repository. Format for this entry is DBMS-specific.
Srv Logon ID	The login ID used for Stat login to the environment. Not used by ODBC.
Server Pwd	The password associated with the Srv Logon ID
Host Name	Name of the machine hosting the database Required value for the Stat Server.
Service Name	For generic applications running on Oracle, the listener service of the database. Used by the Stat Agent to establish JDBC connections to the Oracle database. Required value for the Stat Server.
DB Listener Port	Port number for the database listener.

Create CSR Priorities

17. Go to Maintenance | Domain Specific | CSR Priorities

ClickNew
Enter the Priority cd, description and etc

Create Work Queues

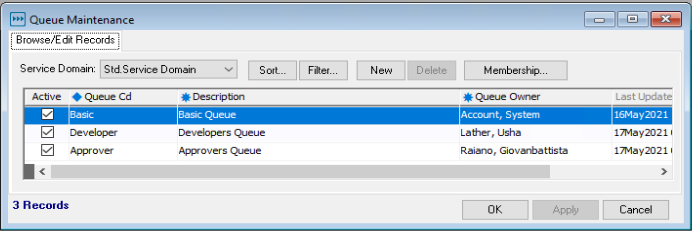

18. Go to Maintenance | Domain Specific | Work queues | Queue definition

19. Click New and enter Queue Cd, Description and select queue owner

20. Click Membership to assign a queue to a specific member

Create Migration Path

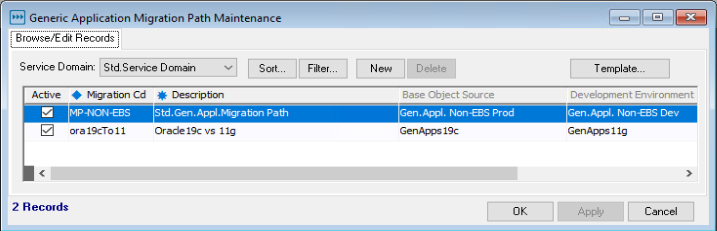

21. Go to Maintenance | Domain Specific | Generic Applications Migration Path

22. Select the Service Domain. Click the New button and enter Migration Cd, Description, select Base Object Source and Development Environment.

Create Object Types

23. Go to Maintenance | General | Object Types.

From the Object Types tab, Object Class dropdown, selectGeneric File Objects.
Click New and enter File Type, File Extension and the rest of the fields.
Double click on the defined File type. Click the New button.

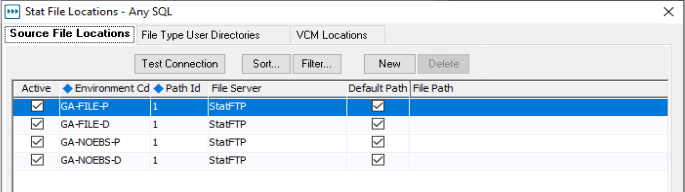

Select Environment Cd (code) from dropdown list, choose File Server location, enter the location of where the File Path resides, make sure to define the File Path for all dbs on the Generic Migration Path.
